Used together with an endoscope, it is designed for grabbing bile duct stones and foreign bodies in the upper and lower digestive tracts.
2. The basket features a rounded
head design, which offers excellent tightening and shaping performance while
protecting the endoscope channel.
3. Rotatable handle can make the
basket a 360° rotation, which
effectively captures small stones and crushed stones.
4.
With
an ergonomic design, the handle ensures a solid connection, rotatable
operation, and good controllability, enabling one-handed use.
| Item No. | O.D.(mm) | Working Length(mm) | Basket Width(mm) | Basket Shape | Endoscope Channlel(mm) | |

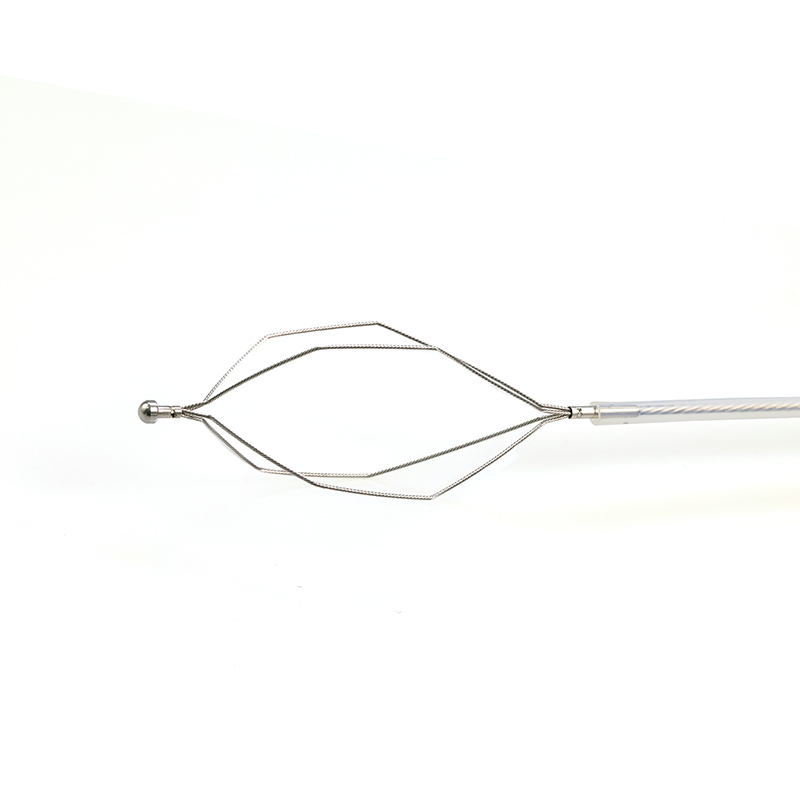

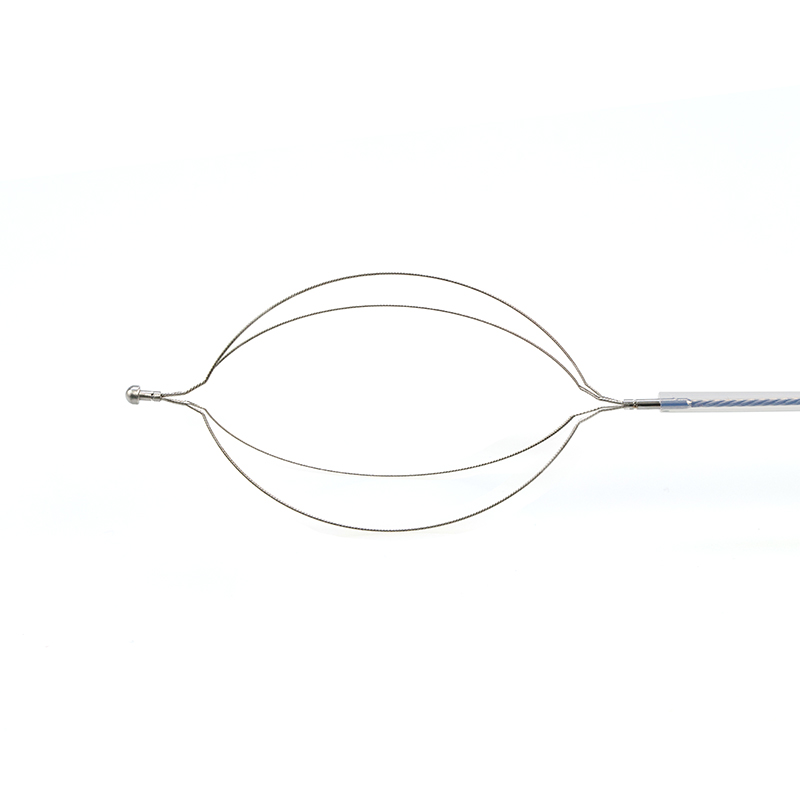

| NKQ-18(07/10/18)-(20/25/30)-(A/B/C) | 1.8 | 700/1000/1800 | 20/25/30 | Diamond(A) Oval(B) Spiral(C) |
2.0 | |
| NKQ-23(16/18/23)-(20/25/30)-(A/B/C) | 2.3 | 1600/1800/2300 | 20/25/30 | Diamond(A) Oval(B) Spiral© |
2.8 | |
